Cryo Electron Microscope

Measure

Structural analysis of frozen hydrated single particles, Cryo electron tomography, micro electron diffraction

CryoEM to analyse frozen hydrated single particles samples, or by electron tomography or electron micro diffraction

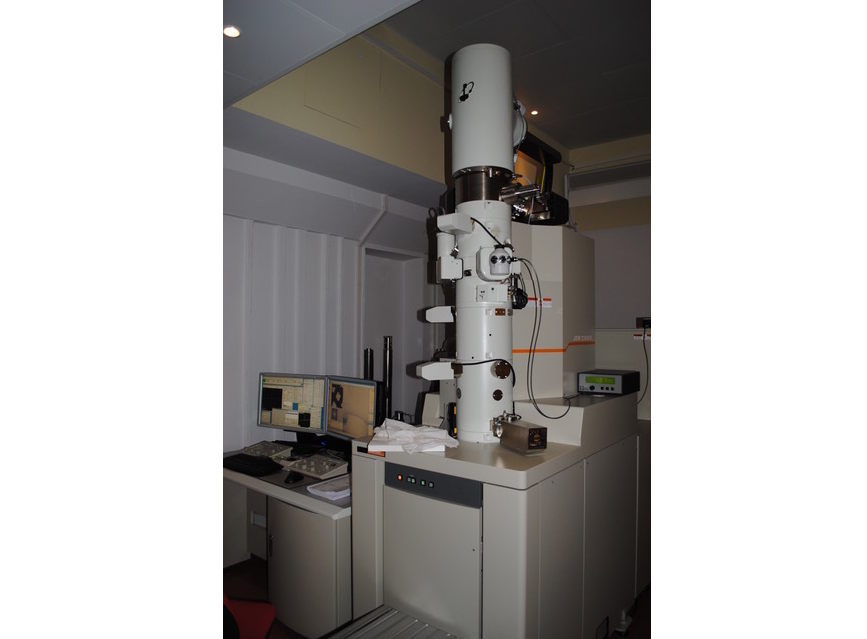

JEOL 2200FS transmission electron microscope


Specifications

It is a FEG microscope working at 200kV, equipped with a GATAN direct detector K3 camera (installed in 2021) to record images. This microscope have a cryo pole piece to allow frozen hydrated samples observation, it is also have a in-column energy filter (Omega filter). The implemented iMDS software allows low dose acquisition, suitable for biological samples that are highly sensitive to electron damages. For cryo electron tomography, Serial EM software is used to collect tilted series from -60° to +60°. For electron micro diffraction, the ASI Cheetah camera (1M Pixels) will be installed in the near future.

https://www.jeolusa.com/PRODUCTS/Transmission-Electron-Microscopes-TEM

Room Z3-9@CBS29
